محصولات پاناسونیکپانابرد پاناسونیک مدل UB-T780
| Category: | Whiteboards | Manufacturer: | Panasonic |
| Brands: | Panaboard | Type: | Interactive Whiteboards |
| Model: | UB-T780 | MPN: | UB-T780 |
ایران پاناسونیک
آدرس سایت : www.iranpanasonic.ir
تلفن : 77615100-77622574-77539061-77616217

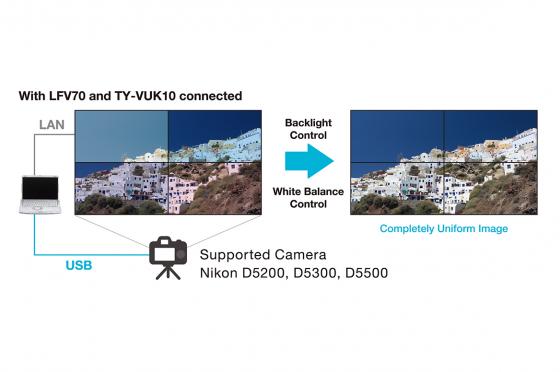

مانیتور صنعتی پاناسونیک مدل TY-VUK10
| FUNCTION | Automatic Color Adjustment Using Camera |
|---|---|
| Requirement | Video Wall Manager Software |
| Activation | License key is required per PC |
| Applicable Cameras |
Nikon D5200, D5300, D5500 Lens：Nicon Normal zoom lens (Angle of view: 29-76°) AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR High-power zoom lens (Angle of view: 12-76°) AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR Normal zoom lens (Angle of view: 29-76°) AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II*1 *1 The camera "C" firmware version 1.01 or newer must be applied on D5300 / D5500. |
| Max. Number of Displays | 25 units (5 x 5) |
ایران پاناسونیک
آدرس سایت : www.iranpanasonic.ir
تلفن : 77615100-77622574-77539061-77616217

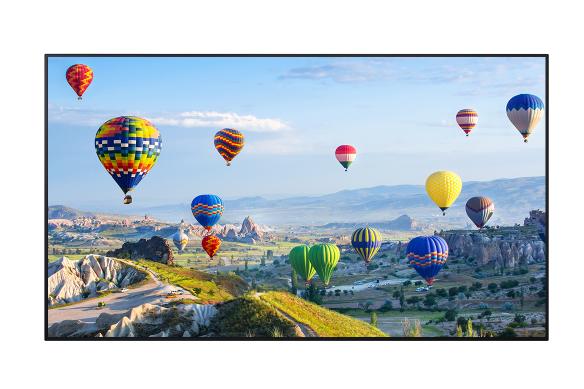

مانیتور صنعتی پاناسونیک مدل TH-65SQ1W
Screen size (diagonal) (inch)
ایران پاناسونیک
| 65-inch (1638.9 mm) | |
| Screen size (diagonal) (mm) | 1638.9 mm |
| Aspect Ratio | 16:9 |
| Panel Type | IPS Panel / Edge-LED |
| Effective display area (W x H) (mm) | 1428.4 x 803.5 mm |
| Effective display area (W x H) (inch) | 56.23 x 31.63 inch |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 500 cd/m2 |
| Contrast Ratio | 1100:1 (Typ) |
| Response Time | 8 ms (G to G) |
| Terminals | HDMI IN | HDMI TYPE-A Connector x 2 |
| Terminals | DisplayPort IN | DisplayPort x 1 |
| Terminals | DisplayPort OUT | DisplayPort x 1 |
| Terminals | DVI-D IN/AUDIO IN (L/R) | DVI-D 24-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with PC In) |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) |
| Terminals | USB | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) |
| Terminals | Serial | D-sub 9-pin x 1, RS232C Compatible |
| Terminals | IR IN / OUT | Stereo Mini Jack (M3) x 1 / x 1 |
| Built-in Speaker | TBD |
| Power Requirements | 220-240 V AC, 50/60 Hz |
| Power consumption | TBD |
| Power Off Condition | TBD |
| Stand-by Condition | TBD |
| Dimensions (W x H x D) (mm) | 1458 x 836 x 74 mm |
| Dimensions (W x H x D) (inch) | 57.40" x 32.90" x 2.91" |
| Carton Size (W x H x D) (mm) | TBD |
| Carton Size (W x H x D) (inch) | TBD |
| Bezel width (mm) | 11.7 mm (T), 15.3 mm (B),12.2 mm (L/R) |
| Bezel width (inch) | 0.46(T),0.6")(B),0.48" (L/R) |
| Operating Time | 24 h/day |
| Weight (kg) | TBD |
| Weight (lbs.) | TBD |
| Wall-hanging pitch (inch) | 15.8˝ x 15.8˝ VESA Compliant |
| Viewing angle [(T/B)/(L/R)] | 178°/178° (CR≧10) |
| Terminals | AUDIO OUT | 30 W [15 W + 15 W] 10% THD |
| Wall-hanging pitch (mm) | 400 x 400 mm VESA Compliant |
| Terminal | DIGITAL LINK | RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™ |
| Terminal | LAN | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ |
| Operating environment | Temperature | Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft) |
| Orientation | TBD |
| Tilting angle | TBD |
| Terminals | Slot |
Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 12 V / 5.5 A, 3.3 V / 1.1 A |
آدرس سایت : www.iranpanasonic.ir
تلفن : 77615100-77622574-77539061-77616217
مانیتور صنعتی پاناسونیک مدل TH-55SQ1W
| Screen size (diagonal) (inch) | 55-inch (1387.8 mm) |
|---|---|
| Screen size (diagonal) (mm) | 1387.8 mm |
| Aspect Ratio | 16:9 |
| Panel Type | IPS Panel / Edge-LED |
| Effective display area (W x H) (mm) | 1209.6 x 680.4 mm |
| Effective display area (W x H) (inch) | 47.62 x 26.78 inch |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 500 cd/m2 |
| Contrast Ratio | 1100:1 (Typ) |
| Response Time | 8 ms (G to G) |
| Terminals | HDMI IN | HDMI TYPE-A Connector x 2 |
| Terminals | DisplayPort IN | DisplayPort x 1 |
| Terminals | DisplayPort OUT | DisplayPort x 1 |
| Terminals | DVI-D IN/AUDIO IN (L/R) | DVI-D 24-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with PC In) |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) |
| Terminals | USB | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) |
| Terminals | Serial | D-sub 9-pin x 1, RS232C Compatible |
| Terminals | IR IN / OUT | Stereo Mini Jack (M3) x 1 / x 1 |
| Built-in Speaker | TBD |
| Power Requirements | 220-240 V AC, 50/60 Hz |
| Power consumption | TBD |
| Power Off Condition | TBD |
| Stand-by Condition | TBD |
| Dimensions (W x H x D) (mm) | 1240 x 714 x 74 mm |
| Dimensions (W x H x D) (inch) | 48.82" x 28.09" x 2.88" |
| Bezel width (mm) | 12.2 mm(T), 15.8 mm (B),12.7 mm (L/R) |
| Bezel width (inch) | 0.48" (T), 0.62"(B),(0.50"(L/R) |
| Operating Time | 24 h/day |
| Weight (kg) | TBD |
| Weight (lbs.) | TBD |
| Wall-hanging pitch (inch) | 15.8˝ x 15.8˝ VESA Compliant |
| Viewing angle [(T/B)/(L/R)] | 178°/178° (CR≧10) |
| Terminals | AUDIO OUT | 30 W [15 W + 15 W] 10% THD |
| Wall-hanging pitch (mm) | 400 x 400 mm VESA Compliant |
| Terminal | DIGITAL LINK | RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™ |
| Terminal | LAN | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ |
| Operating environment | Temperature | Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft) |
| Terminals | Slot |
Intel® SDM specification Corresponding size SDM-S / SDM-L |
آدرس سایت : www.iranpanasonic.ir
تلفن : 77615100-77622574-77539061-77616217
مانیتور صنعتی پاناسونیک مدل TH-49SQ1W
